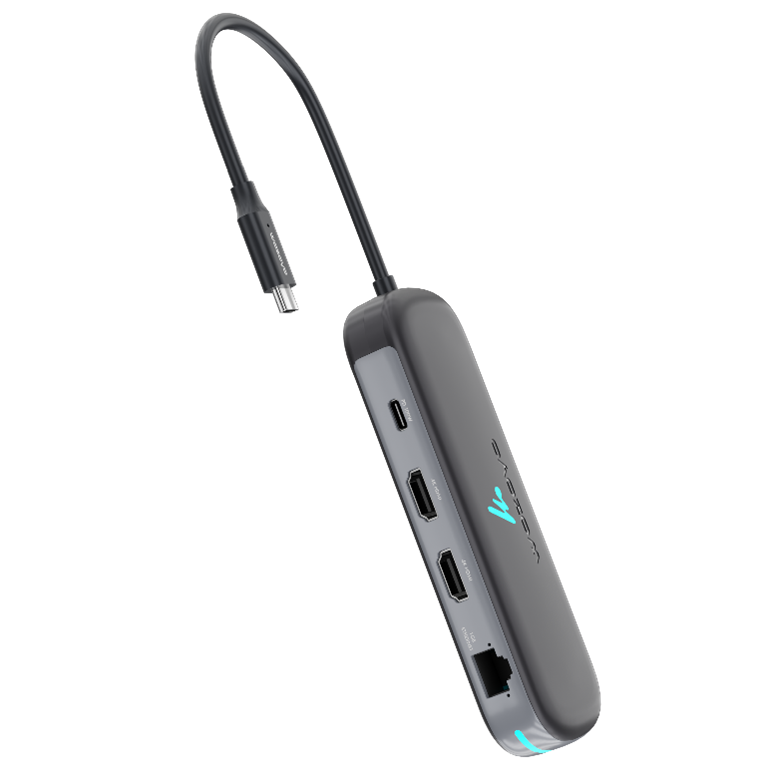

| Items | Specifications |
|---|---|
| 1*SD & 1*TF | Maximum transfer rate: 104MB/s; Supports UHS-I (SD/SDHC/SDXC) Supports memory card capacities ≤ 2TB Supports dual-card dual-read |
| 2*USB-A 3.2 GEN 1 | Supports USB protocol, USB3.2 GEN1 at 5Gbps |
| 1*USB-A 2.0 | Supports USB protocol, USB 2.0 at 480 Mbps |
| 1*Type-C (PD 100W) | Supports PD 100W, 3.0 protocol, with maximum input of 20V/5A. |
| 2*HDMI | Supports HDMI protocol, enabling 4K@30Hz output while backward compatible with, 1080P@60Hz, and more. Supports HDR. |
| 1*Ethernet | Supports Gigabit Ethernet, backward compatible with 100Mbps and 10Mbps. |
| 1* VGA | for easy connection to older projectors, conference equipment, or monitors (1080P@60Hz) |
| Compatibility | MAC OS 10.2* and above; Windows 7/10/11 (32/64-bit); Linux Kernel 3.x and above; Android12 and above; iOS 15 and above |
* Mac OS does not support MST (Multi-Stream Transport).
| Display Mode | Use of Scenario | Maximum Resolution |
|---|---|---|
| Standard | HDMI or VGA | HDMI: 4K@30Hz VGA: 1080p@60Hz |
| SST | 2×HDMI | Dual 4K@30Hz |
| 2×HDMI + VGA | Triple 1080p@60Hz | |
| MST | 2×HDMI | Dual 1080p@60Hz |
| 2×HDMI + VGA | Triple 1080p@60Hz |
- The host’s device must have a fully functional USB-C port i.e USB-C port includes data transfer, DP Alt Mode, and power delivery; otherwise, video or charging may not work.
- Charging performance depends on the input power adapter.
- Dual HDMI output resolution depends on the host device’s GPU capability and support for DSC (Display Stream Compression).
- MAC address pass-through requires host support: In enterprise networks, if this function is required, please enable "MAC Address Pass-Through" in the computer's BIOS settings.
- Store the product in a dry location and avoid exposure to humid environments.
- Avoid splashing liquids into the connector to prevent performance issues.
- Open flames sources, such as candles, must not be placed near this product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Company Name: Secure Connection Limited
Address: 807, Arion Commercial Centre, 2 - 12 Queen’s Road West, Sheung Wan, Hong Kong
Telephone: +852 5803 1828
Download English Manual
