- 1. Wozoyo Pure Air PA5 Air Purifier꞉ 1 Unit
- 2. Compound Filter꞉ Pre Filter, True HEPA Filter and Activated Carbon Filter꞉ 1 Unit
- 3. Thank You Card꞉ 1 Unit
- 4. User Manual꞉ 1 Unit

| Items | Description |
|---|---|

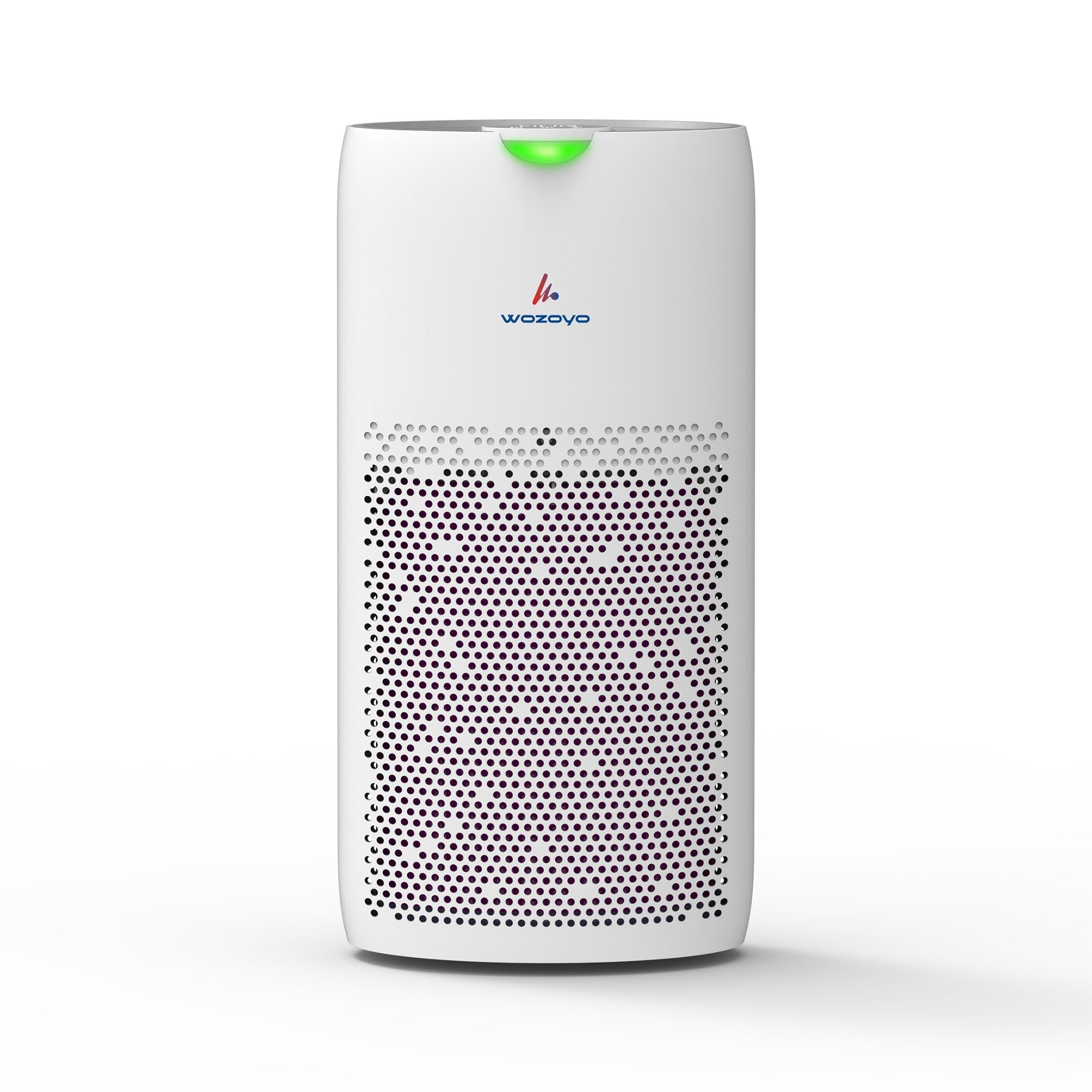

| Model | Pure Air PA5. |
| Rated Voltage | 120V |
| Rated Frequency | 50/60Hz |
| Rated Power | 45W. |
| Noise (High Speed) | 54dB/A |
| Noise (Low Speed) | 22dB/A |
| Smoke CADR | 199CFM/338m³/h. |
| Applicable Area (1ACH) | 1493ft /139m. |
| Net weight | 4.0kg. |
| Product Measurements | L240Xw240xH470mm. |
| 3 in 1 Filter | Pre‑Filter, True HEPA Filter and Activated Carbon Filter |
The air purifier is equipped with Pre-Filter, Nano-Silver Anti-Bacterial Filter, H13 HEPA Filter, Activated Carbon Filter

1. Rotate the bottom panel counterclockwise to remove the panel.
2. Take the filter out of the air purifier.
3. Remove the Protective PE Bag from the filter and then re‑insert the filter.
4. Rotate the panel clockwise to tighten & fix the bottom panel.
Control Panel
| Features | Description |
|---|---|
|
Power Button
|
Power Button When the Air Purifier is plugged into the wall socket, press the “Power" button to turn on the Air Purifier. By pressing the “Power” button again, the Air Purifier goes into standby mode. |
|
Timer
|
Timer Button Short press Timer button to set a timer for 2, 4 & 8 hours. |
|
Speed
|
Fan Speed When the Air Purifier is powered on, press the Fan Speed button to adjust the fan speed of the Air Purifier. This Air Purifier has three fan speed levels, from low (1) to high (3) Light brightness adjustment꞉ Press and hold the mode button for 3 seconds to toggle between the three different brightness levels (100%, 50% & 0% brightness) When the brightness is set to 0%, pressing any other button will restore the brightness to 100%. |
|
Auto Mode
|
Auto Mode In this mode, the air purifier changes the fan speed according to the current air quality. |
|
Sleep Mode
|
Sleep Mode Press the Fan Speed button to toggle between fan speeds and sleep mode, when device is in sleep mode, all the lights on the control panel will turn off except for sleep indicator, the Air purifier will perate at the lowest Fan speed. Press any button to exit the Sleep mode. |
|
WIFI Button
|
WIFI Button Press the WIFI buttons simultaneously for 3 seconds, after hearing a beep, the device enters the WIFI configuration stage. Please refer to the How to Connect to WIFI section in the User manual for complete guide regarding WIFI connection. |
|
Filter Reset Button
|
WIFI Button When the filter indicator light flashes, the filter needs replacement is required. After replacing the filter, press the Filter Reset button for 3 seconds. |
|
Child Lock
|
Child Lock Press the Child Lock button for 3 seconds to enter and exit the Child Lock mode. When Child Lock is on, all buttons are disabled. |
Download Wozoyo Pyurify APP To download the “Wozoyo Pyurify” App, search “Wozoyo Pyurify” in the Apple App Store or Google Play Store.
Open the Wozoyo Pyurify App to Register and Log in.
Connecting to the Wozoyo Pyurify App
Step 1: Short press the "Power" button to turn on the Air Purifier.
Step 2: Long press the Auto button for 3 seconds, after hearing a beep, the device enters the WIFI configuration stage.
Step 3: Go to the home page of the Wozoyo Pyurify App to pair the Air Purifier.
Step 4: Click on "Add Device" on the Wozoyo Pyurify App.
Step 5: Follow the steps on the App to successfully connect your Air Purifier with the Wozoyo Pyurify App.
To reduce the risk of fire, electric shock, or other injury, follow all instructions and safety guidelines.
- This air purifier is not to be used by person (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety
- Do not use the air purifier in wet or humid environments, or outdoors. This appliance is designed for indoor use only
- Do not put the air purifier on an uneven floor such as a bed or sofa. Always make sure to place the air purifier on a flat surface before operating. Leave more than 20 cm distance between the air purifier and the wall
- Do not place the air purifier near sources of heat, such as stove tops, ovens, or radiators.
- Do not handle the unit with wet hands. Thoroughly dry your hands before handling any part of the air purifier.
- Do not use without removing the plastic wrap from the air purifier and filters.
- Do not attempt to use other filters with this appliance. Only use air replacement filters for this unit.
- Do not block the air inlet or outlet with anything.
- Do not insert fingers or objects into the air outlet.
- Do not immerse air purifier in liquids or clean the appliance with any liquid to avoid electric shock and/or electrical fires.
- WARNING꞉ To reduce the risk of fire or electric shock, do not use this fan with any solid‑state speed control device.
- WARNING꞉ To reduce the risk of fire, electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. Parts made at home using a 3D printer).
- Do not use your air purifier if it is damaged or not working correctly, or if the cord or plug is damaged. Do not try to repair it yourself. contact customer support.
- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to bypass this safety feature..
Cleaning the unit.
- Please turn off the Air Purifier and unplug power plug before cleaning the air purifier.
- To remove dust, lightly wipe the unit with a soft, clean cloth. If needed, wipe the unit with a clean damp cloth, then immediately dry with a clean dry cloth. Don't use alcohol, oil, or benzene to clean the unit.
- Do not immerse the unit in water.
- To clean the 4 in 1 compound filter, use a dry, soft cloth to wipe it down.
Replacing the filter.
- The actual filter replacement frequency depends on its usage and air quality.
- After replacing the filter, press the Timer button for 3 seconds to enable "filter reset function", otherwise the filter light will keep blinking.
| Malfunction | Inspect / How to Fix |
|---|---|
| Cannot turn on power or touching any button has no response | Qus: Is the power cord plugged in? Ans: Plug the power cord into the wall socket tightly. Qus: Is the Air Purifier back panel open? Ans: Close the back panel. Qus: Is the Air Purifier stable and placed on the ground? Ans: Place the Air Purifier in a stable manner on the ground. Qus: Is the Air Purifier in child‑lock mode? Ans: If "CHILD LOCK" icon is on, deactivate the child lock mode. |
| 1. The air is dirty, but the PM2.5 light bar stays green. | Ans: Change the Air Purifier placement and position. Ans: Leave 20cm clearance on all sides of the air purifier. Ans: The filters may be dirty. Clean the filters as per instructions in the user manual. |
| 2. The PM2.5 light indicator is red even when the Air Purifier is continuously powered on. | Ans: The filters may need replacement. Purchase new filters. Ans: The protective plastic bag may not have been removed from the filters. Remove it. |
| 3. The Air Purifier is giving off a foul smell. | Ans: The filters may not be placed in the correct manner. Place them correctly. |
| 4. The Air Purifier has been running for a long time but has had no significant improvement in air quality. | Ans: Change the Air Purifier placement and position. Ans: Leave 20cm clearance on all sides of the air purifier. Ans: The filters may be dirty. Clean the filters as per instructions in the user manual. Ans: The filters may need replacement. Purchase new filters. |
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Company Name: Secure Connection Limited
Address: 807, Arion Commercial Centre, 2–12 Queen's Road West, Sheung Wan, Hong Kong
Telephone: +852 5803 1828
Download English Manual
